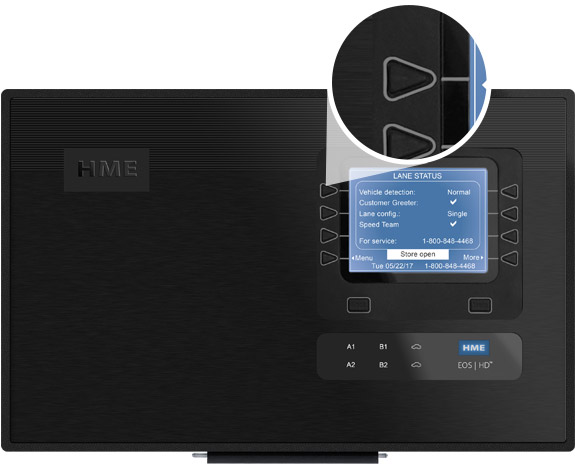

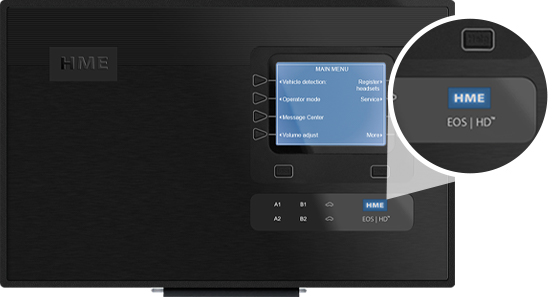

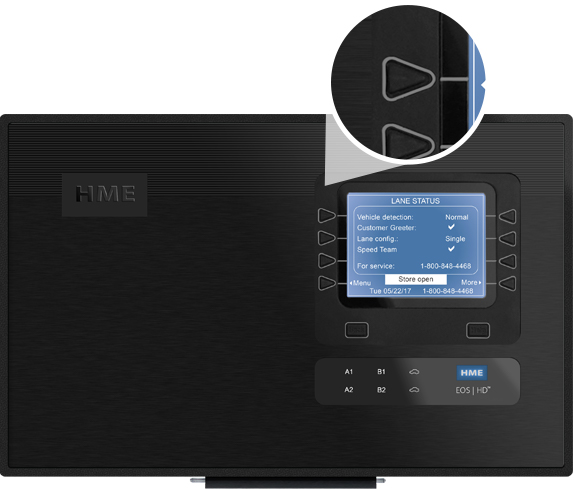

Press any triangular button on the base station to illuminate home screen.

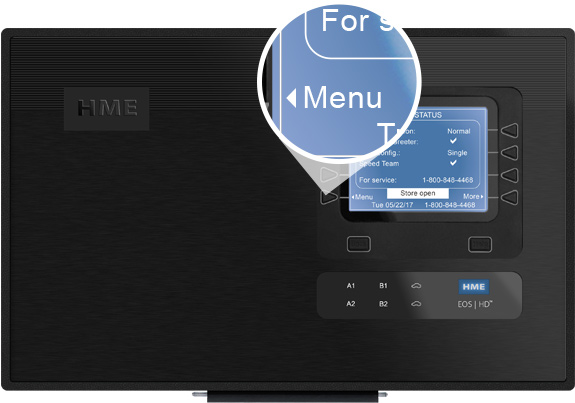

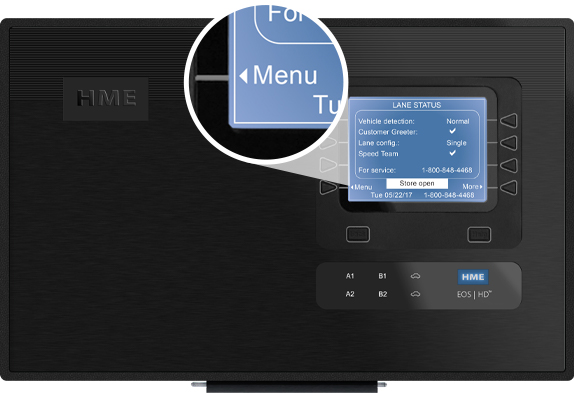

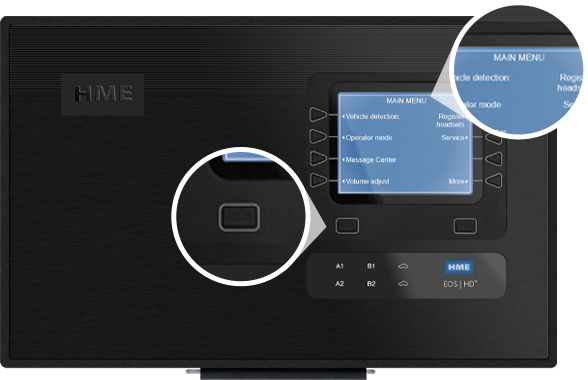

Press Menu button on lower left of screen.

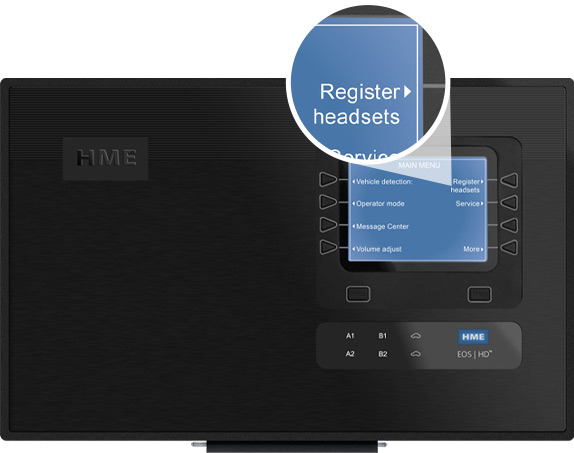

On MAIN MENU screen, press Register headsets button.

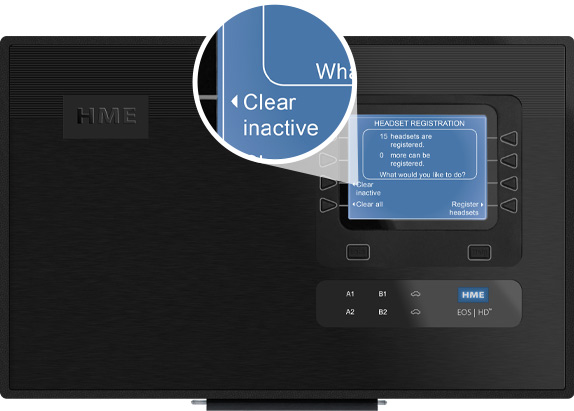

Please note that a maximum of 15 headsets or belt-pacs can be registered to the base station. If the maximum number is reached, the base station HEADSET REGISTRATION screen will indicate that 0 or more headsets can be registered. To register additional headsets, the inactive ones need to be cleared. To clear inactive headsets, refer to instructions at the bottom of this page.

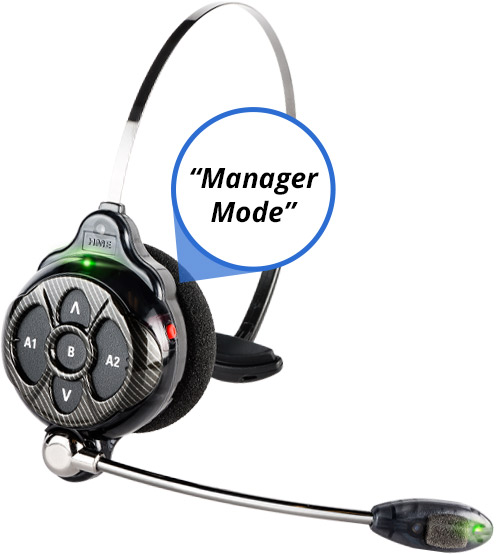

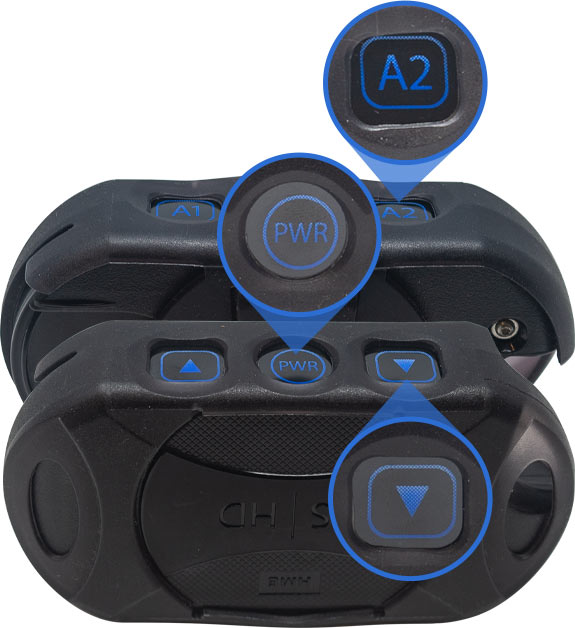

Next, put the headset or belt-pac into registration mode:

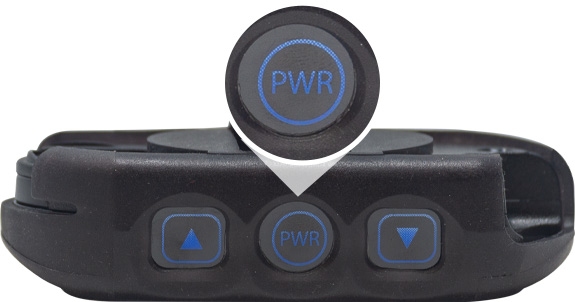

Power off headset or belt-pac by holding power button for three seconds.
Press and hold power button for five seconds.

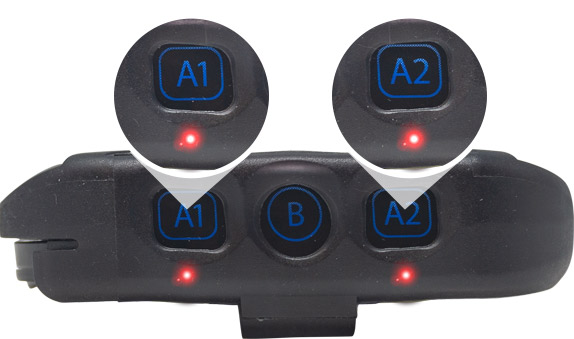

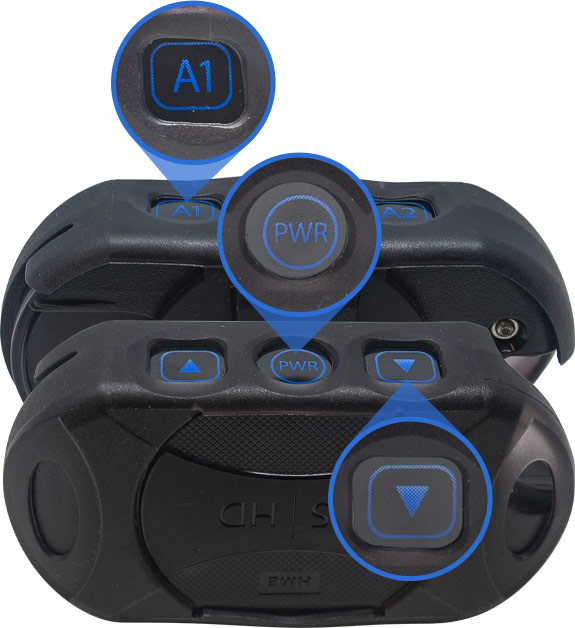

On belt-pac, two red lights will flash next to A1 and A2 buttons.
Please note that the instructions on the base station TO REGISTER HEADSETS screen are an alternative way to put the headset or belt-pac into registration mode.
On belt-pac, two red lights will flash next to A1 and A2 buttons.
Please note that the instructions on the base station TO REGISTER HEADSETS screen are an alternative way to put the headset or belt-pac into registration mode.
Complete registration on base station:

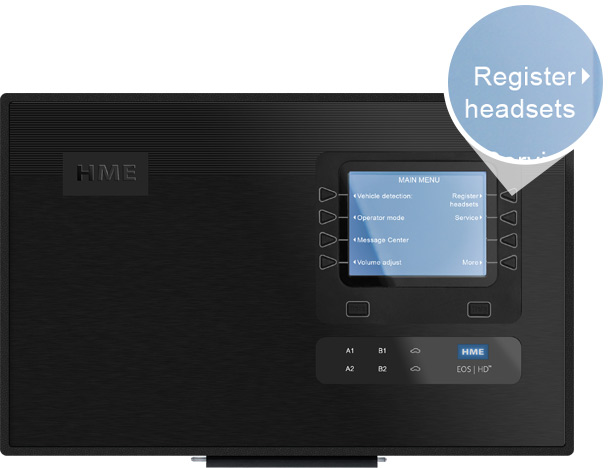

On HEADSET REGISTRATION screen, press Register headsets button.
If you are registering only one headset or belt-pac on TO REGISTER HEADSETS screen, press Register single button.
If you are registering more than one headset or belt-pac, press Register multi button.

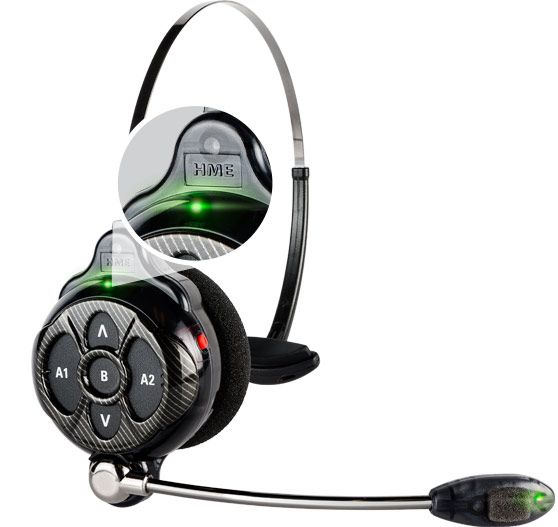

Solid green light will appear on headset or belt-pac once registered and ID number will appear on base station screen.
Press any triangular button on the base station to illuminate home screen.
Press Menu button on lower left of screen.
On MAIN MENU screen, press Register headsets button.
Please note that a maximum of 15 headsets or belt-pacs can be registered to the base station. If the maximum number is reached, the base station HEADSET REGISTRATION screen will indicate that 0 or more headsets can be registered. To register additional headsets, the inactive ones need to be cleared. To clear inactive headsets, refer to instructions at the bottom of this page.
Next, put the headset or belt-pac into registration mode:
Power off headset or belt-pac by holding power button for three seconds.
Press and hold power button for five seconds.
On belt-pac, two red lights will flash next to A1 and A2 buttons.
Please note that the instructions on the base station TO REGISTER HEADSETS screen are an alternative way to put the headset or belt-pac into registration mode.
On belt-pac, two red lights will flash next to A1 and A2 buttons.
Please note that the instructions on the base station TO REGISTER HEADSETS screen are an alternative way to put the headset or belt-pac into registration mode.
Complete registration on base station:
On HEADSET REGISTRATION screen, press Register headsets button.
If you are registering only one headset or belt-pac on TO REGISTER HEADSETS screen, press Register single button.
If you are registering more than one headset or belt-pac, press Register multi button.
Solid green light will appear on headset or belt-pac once registered and ID number will appear on base station screen.
